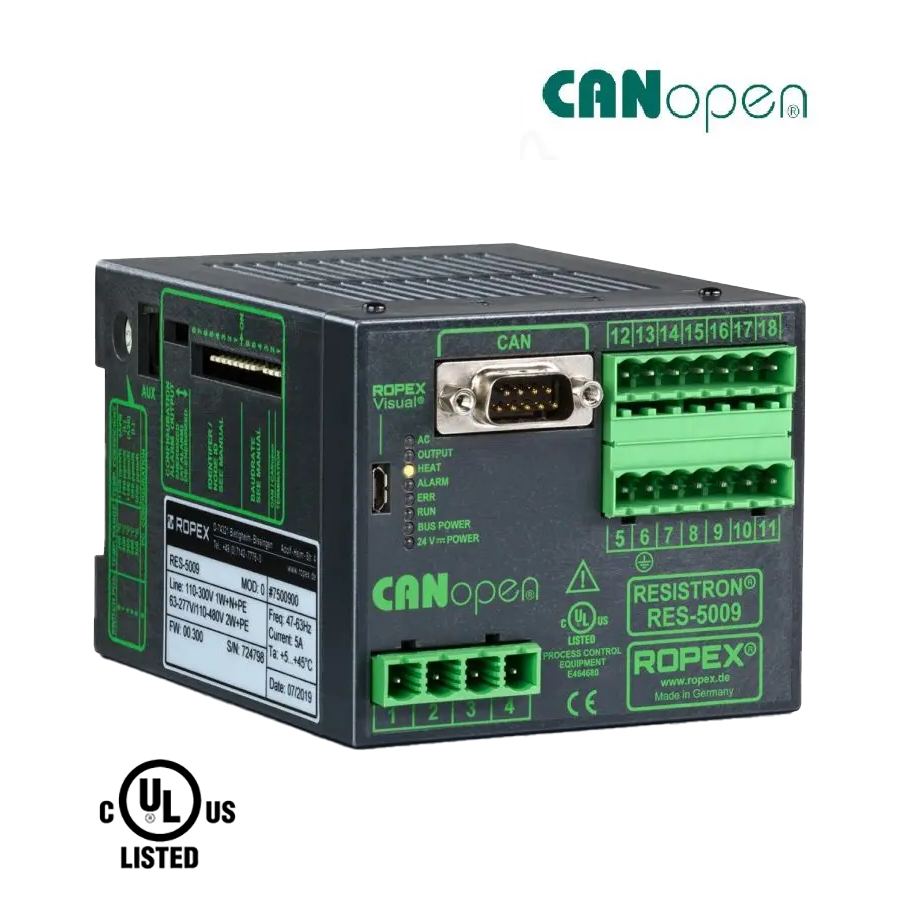

ROPEX RES-5009

The ROPEX Resistron RES-5009 controller utilizes microprocessor technology for sensorless, closed-loop control of impulse heating elements. The ROPEX RES-5009 is designed for simple plug-in system integration.

The use of ROPEX Resistron controls goes beyond impulse heat sealers, form fill machines, and converting equipment. ROPEX Resistron controllers provide a solution for an extensive range of heating applications:

ROPEX Visual® enables you to connect directly to the RES-5009 Resistron controller via Micro-USB, giving you direct access to controller settings and error codes.

Ropex RES-5009 Features:


• CAN 2.0A interface acc. to ISO 11898 for controlling all controller functions


• CANopen interface for controlling all controller functions


• Automatic zero calibration (AUTOCAL)


• Automatic secondary voltage and current configuration


• Automatic phase angle compensation (AUTOCOMP)


• Automatic frequency adjustment


• Booster terminal as standard


• Electrically isolated 0…10 VDC analog output for ACTUAL temperature


• Electrically isolated 24 VDC control signals for START 0 (setpoint 0) and START 1 (setpoint 1)


• Selectable heatseal band temperature range (up to 500°C)


• Selectable heatseal band alloy (A20 (Alloy-20), A20L, Low-Ex, etc. ...)


• Free ROPEX Visual® Windows PC software


• UL certification

Ropex RES-5009 Part Numbers:


• Power Supply 110...480 VAC


• Ropex Resistron RES-5009/110...480 VAC


• Ropex Part No. 7500900

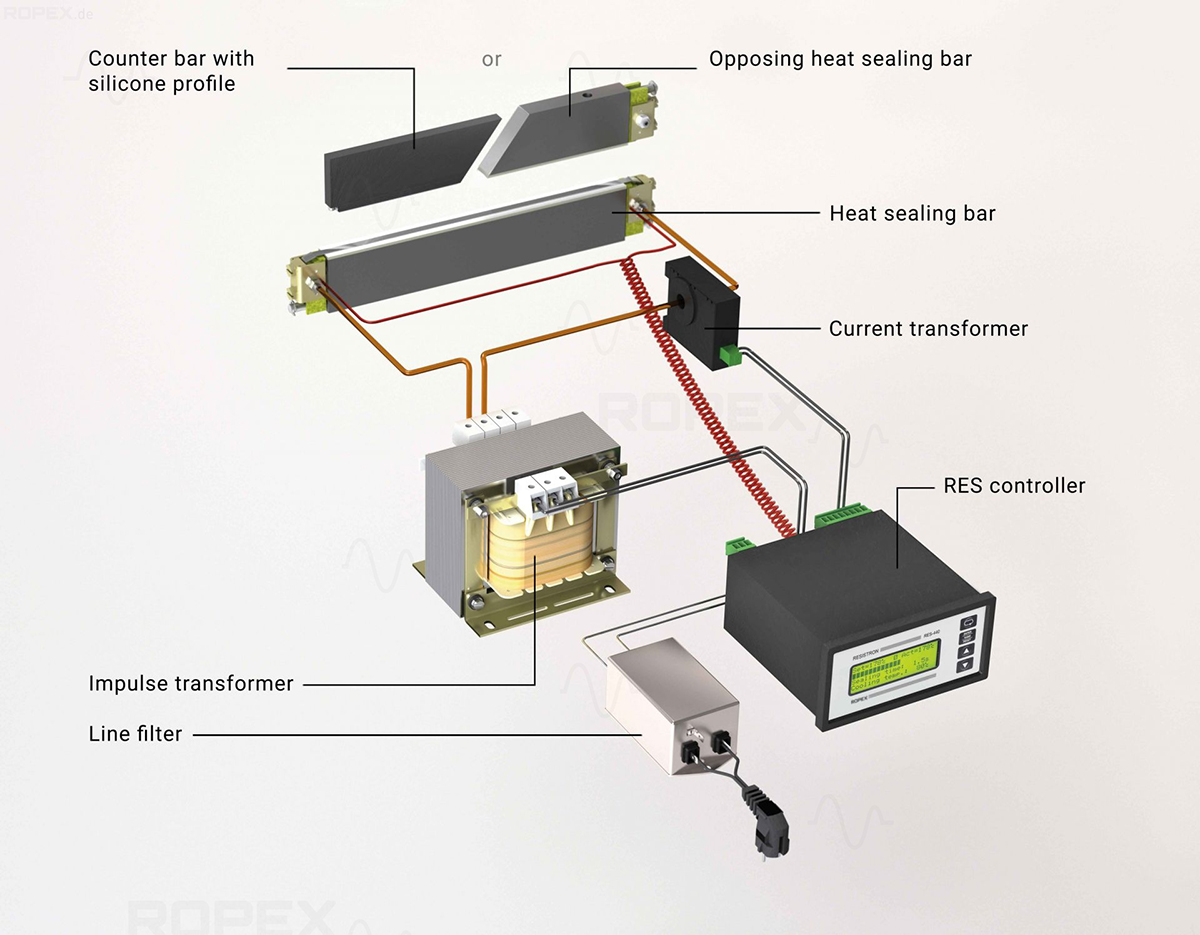

Ropex RES-5009 Accessories:


• Line filter: LF-06480, LF-10520, LF20520, LF30520, LF50520


• Booster: B-075480, B100480


• Current transformer: PEX-W5


• Current transformer high busbar: HCB-1


• Impulse Power Transformer: TR-X


• Twisted Cable (RES voltage measurement cable): UML


• High Current Cable (RES current load cables): C-TC

Our engineering team members have a diverse background and extensive industry experience. We offer full engineering support for new applications and upgrades. We will work with you to design a complete system tailored to your application.
